ONYX Series Inverters

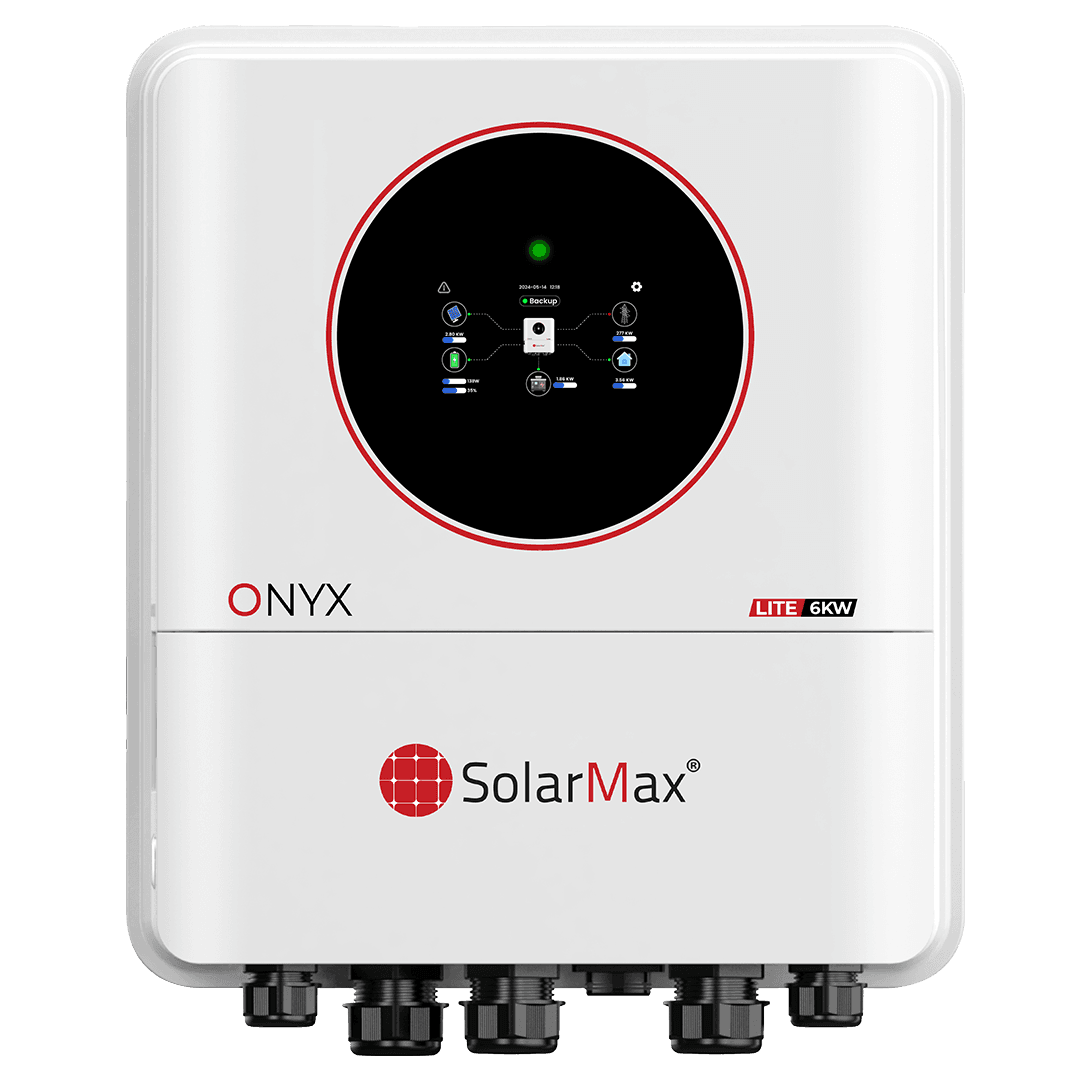

ONYX LITE 6 kW
6 kW · Hybrid
Premium hybrid solar inverter essentials in a streamlined package.
ONYX Series Inverters
ONYX UL 20 kW
Top-of-range three-phase hybrid inverter for commercial and multi-load sites.
20 kWHybrid3-Phase
Official datasheet · 1.9 MB
- Lifetime free service warranty
- ISO · CE · IEC certified
- Nationwide care network
Technical data
Key specifications
- Rated Output
- 20 kW
- Type
- 3-Phase Hybrid
- Max PV Input
- 40,000 W
- MPPT Trackers
- 3 (20 A each)
- Charge / Discharge
- Up to 380 A
- Grid Pass-Through
- 45 A
- Protection
- IP65 Indoor / Outdoor
- Battery
- 40–60 V Lithium / Lead-acid
- Parallel
- Up to 9 units
- Display
- HMI Touch LCD
Product highlights
Built for real-world performance
- Three-phase IP65 hybrid solar inverter
- 3 MPPTs with up to 40 kW PV input
- Built-in WiFi and HMI touch LCD
- Smart load, generator and AC coupling
- Parallel up to 9 units
- CE, IEC certified
Documentation
Datasheet preview
Technical documentation for ONYX UL 20 kW.
ONYX UL 20 kW DatasheetOpen in new tab
Common questions
ONYX UL 20 kW FAQs
Straight answers from official SolarMax product data.
What is the SolarMax ONYX UL 20 kW?
The SolarMax ONYX UL 20 kW is a solar inverter in the ONYX Series Inverters. Top-of-range three-phase hybrid inverter for commercial and multi-load sites. Key labels include 20 kW, Hybrid, 3-Phase.
What are the key specifications of the ONYX UL 20 kW?
Official SolarMax specifications for the ONYX UL 20 kW include Rated Output: 20 kW; Type: 3-Phase Hybrid; Max PV Input: 40,000 W; MPPT Trackers: 3 (20 A each). Full technical data is published on the product page and datasheet.
Where can I download the ONYX UL 20 kW datasheet?
Download the official ONYX UL 20 kW datasheet (PDF, 1.9 MB) from https://solarmax.pk/products/onyx-ul-20kw or the SolarMax downloads page at https://solarmax.pk/downloads.
How do I enquire about the ONYX UL 20 kW in Pakistan?
Contact SolarMax sales at 0300-1110888 or info@solarmax.pk, or use the product enquiry form on https://solarmax.pk/products/onyx-ul-20kw. Customer care is available at 0317-1113749.
What features does the ONYX UL 20 kW include?
Highlighted features of the SolarMax ONYX UL 20 kW include Three-phase IP65 hybrid solar inverter; 3 MPPTs with up to 40 kW PV input; Built-in WiFi and HMI touch LCD.
Same product family
More from ONYX Series Inverters
ONYX Series Inverters

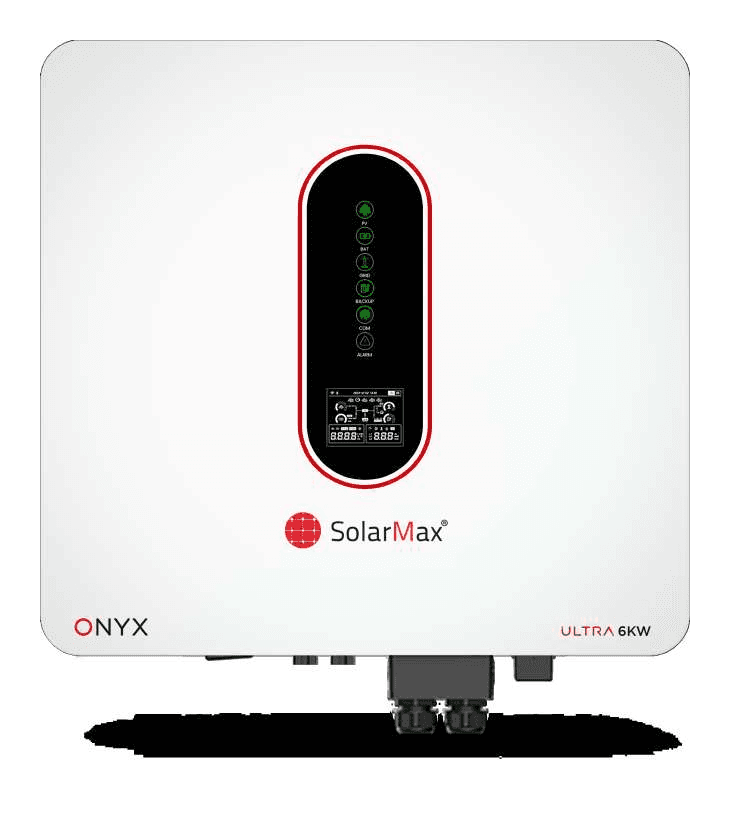

ONYX DUAL ULTRA 6 kW
6 kW · Hybrid
Dual-output ULTRA hybrid design for flexible load management.
ONYX Series Inverters

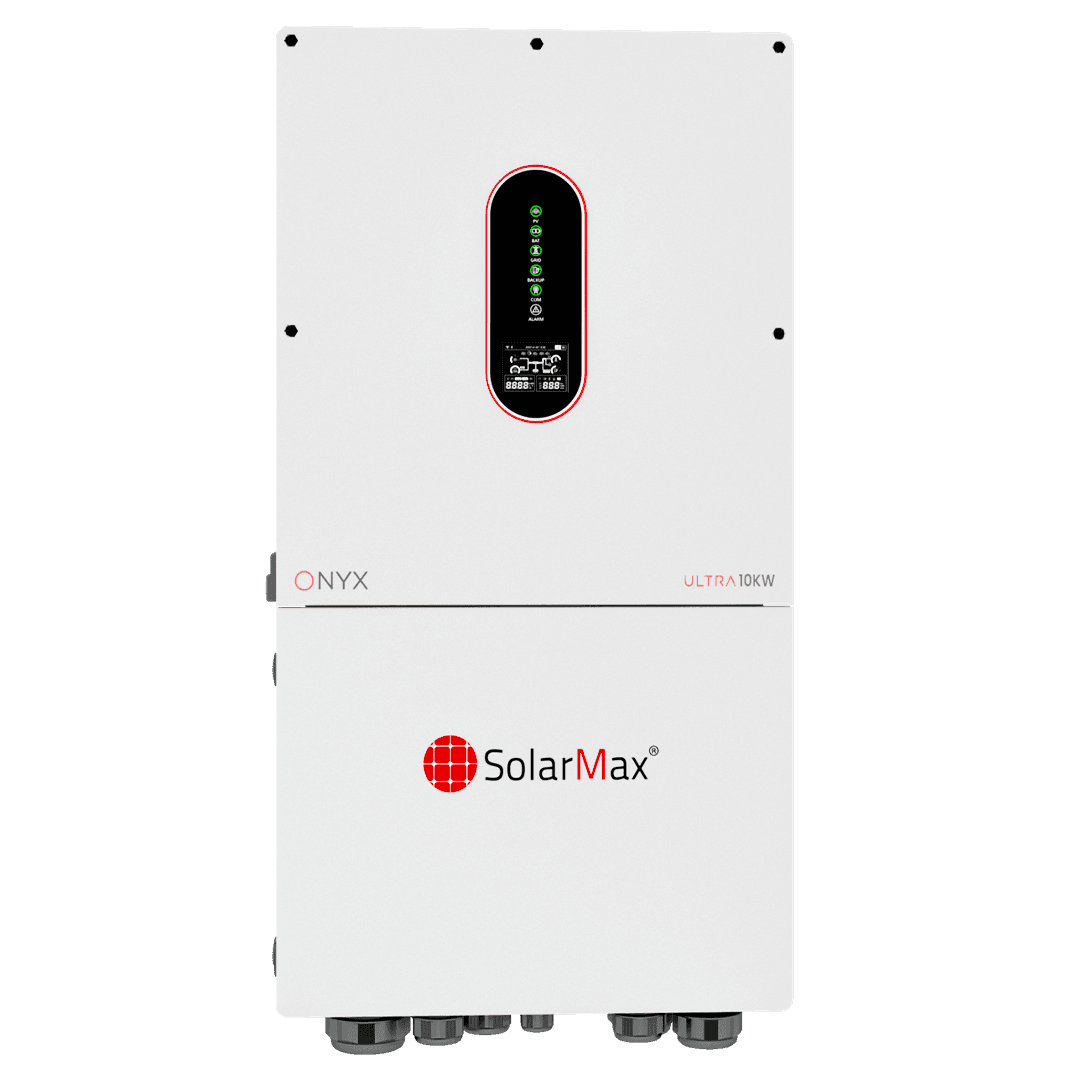

ONYX UL 10 kW
10 kW · Hybrid
Flagship 10 kW hybrid solar inverter for high-demand households.
ONYX Series Inverters
ONYX UL 12 kW
12 kW · Hybrid
Three-phase IP65 hybrid inverter for larger homes and light commercial loads.
Expert sizing support
Interested in ONYX UL 20 kW?
Share your load profile and our engineers will recommend the right system.
