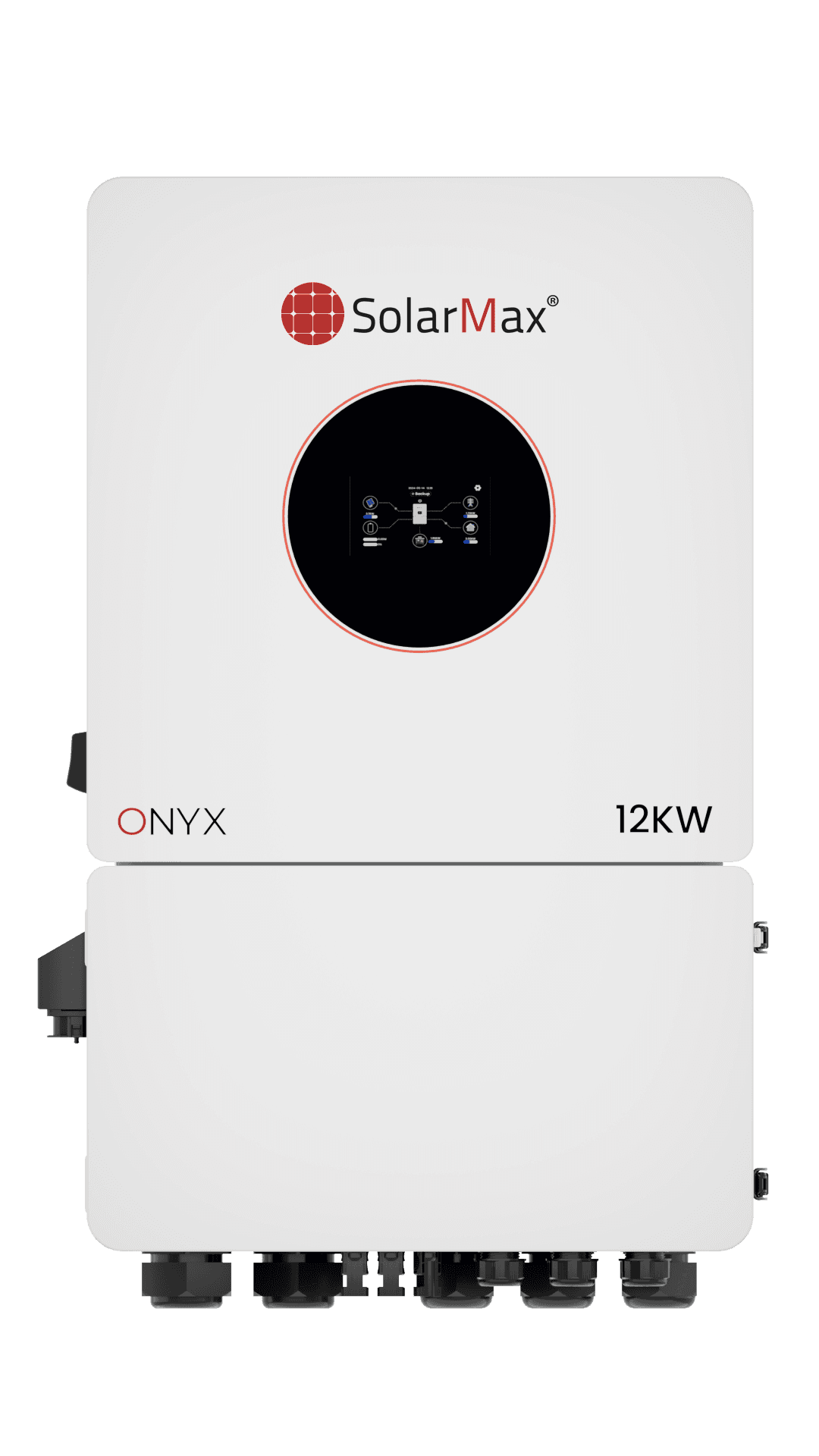

ONYX 12KW Single Phase
Single-phase IP65 hybrid solar inverter with 3 MPPTs and up to 18 kW PV array.
12 kWHybridSingle PhaseIP60/65
Official datasheet · 1.7 MB
- Lifetime free service warranty
- ISO · CE · IEC certified
- Nationwide care network
Technical data
Key specifications
- Rated Output
- 12 kW
- Type
- Single-Phase Hybrid
- Phase
- Single-phase
- Max PV Array
- 18,000 W
- Max PV Usable
- 15,000 W
- MPPT Trackers
- 3 (20 A each)
- Max Efficiency
- 98%
- Protection
- IP65 Indoor / Outdoor
- Battery
- 40–64 V Lithium / Lead-acid
- Charge / Discharge
- 210 A / 10 kW
- Transfer Time
- < 10 ms
- Parallel
- Up to 9 units
- Display
- HMI Touch LCD
- Dimensions
- 440 × 725 × 251.5 mm
- Weight
- 39 kg
Product highlights
Built for real-world performance
- Single-phase IP65 hybrid solar inverter
- 3 MPPTs with up to 18 kW PV array (15 kW usable)
- 20 A PV input current per MPPT
- 40–64 V lithium / lead-acid battery support
- Smart load, generator and AC coupling
- Parallel up to 9 units (3 for three-phase)
- Seamless backup transition under 10 ms
- HMI touch LCD with SolarMax Onyx App monitoring
- CE, IEC certified
Documentation
Datasheet preview
Technical documentation for ONYX 12KW Single Phase.
ONYX 12KW Single Phase DatasheetOpen in new tab
Common questions
ONYX 12KW Single Phase FAQs
Straight answers from official SolarMax product data.
What is the SolarMax ONYX 12KW Single Phase?
The SolarMax ONYX 12KW Single Phase is a solar inverter in the ONYX Series Inverters. Single-phase IP65 hybrid solar inverter with 3 MPPTs and up to 18 kW PV array. Key labels include 12 kW, Hybrid, Single Phase, IP60/65.
What are the key specifications of the ONYX 12KW Single Phase?
Official SolarMax specifications for the ONYX 12KW Single Phase include Rated Output: 12 kW; Type: Single-Phase Hybrid; Phase: Single-phase; Max PV Array: 18,000 W. Full technical data is published on the product page and datasheet.
Where can I download the ONYX 12KW Single Phase datasheet?
Download the official ONYX 12KW Single Phase datasheet (PDF, 1.7 MB) from https://solarmax.pk/products/onyx-12kw or the SolarMax downloads page at https://solarmax.pk/downloads.
How do I enquire about the ONYX 12KW Single Phase in Pakistan?
Contact SolarMax sales at 0300-1110888 or info@solarmax.pk, or use the product enquiry form on https://solarmax.pk/products/onyx-12kw. Customer care is available at 0317-1113749.
What features does the ONYX 12KW Single Phase include?
Highlighted features of the SolarMax ONYX 12KW Single Phase include Single-phase IP65 hybrid solar inverter; 3 MPPTs with up to 18 kW PV array (15 kW usable); 20 A PV input current per MPPT.
