Lithium-Ion Batteries

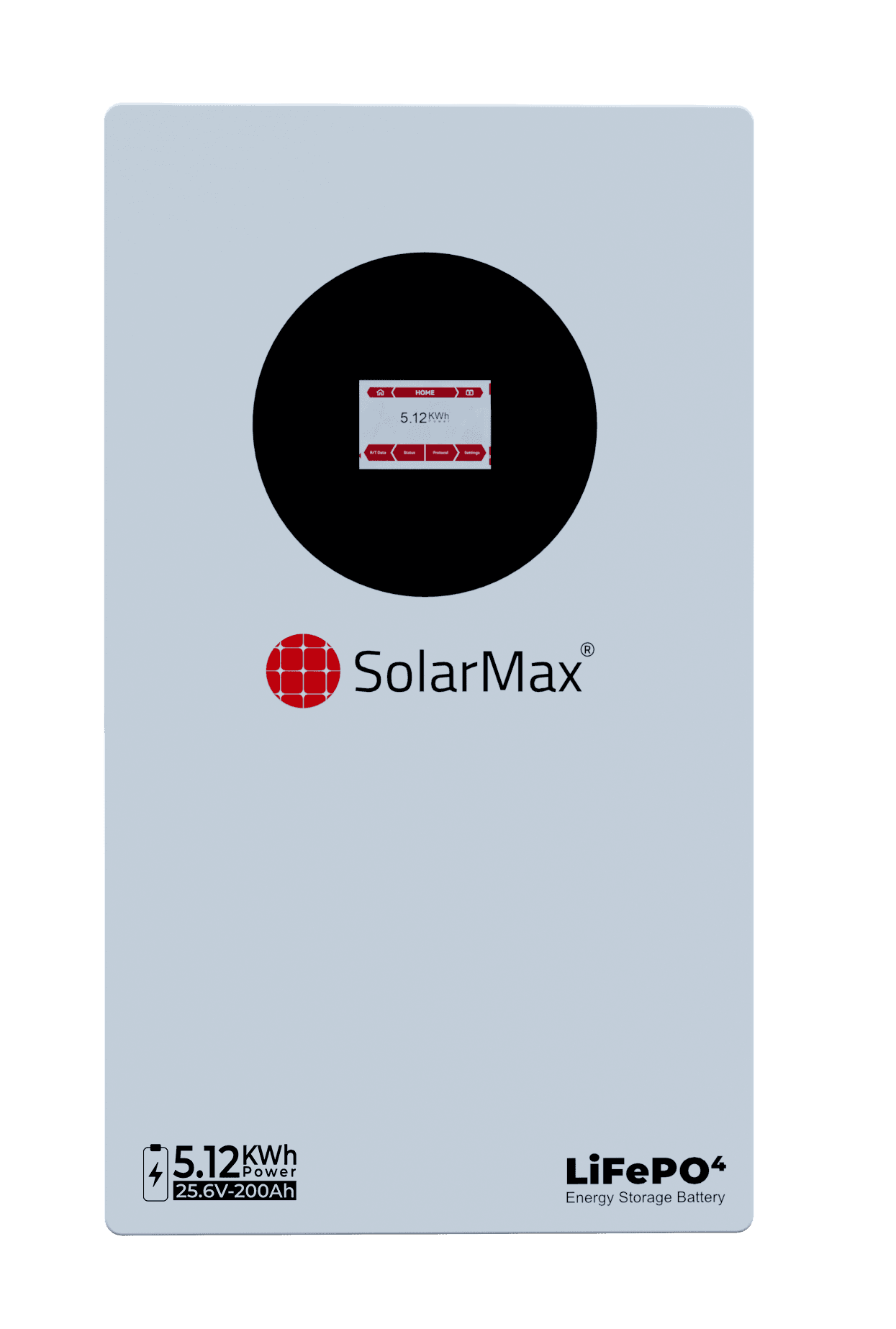

SM-LFP 24200 | IP20
24V 200Ah high-capacity storage with smart BMS. For Solar Energy Storage Systems with smart BMS Builtin.
25.6 V200 Ah5.12 kWh
Official datasheet · 0.2 MB
- Lifetime free service warranty
- ISO · CE · IEC certified
- Nationwide care network
Technical data
Key specifications
- Rated Voltage
- 25.6 V
- Capacity
- 200 Ah
- Energy
- 5.12 kWh
- Chemistry
- LiFePO4
- Cycle Life
- ≥6,000 @ 80% DOD
- Parallel
- Up to 16 units
- Monitoring
- Bluetooth, WiFi, LCD
- Interface
- RS232, RS485, CAN
- Dimensions
- 374 × 650 × 143 mm
- Weight
- 43 kg
Product highlights
Built for real-world performance
- Floor-standing LiFePO4 storage
- Parallel up to 16 units
- 5.12 kWh / 200 Ah capacity
- Bluetooth, WiFi and LCD monitoring
- RS232, RS485 and CAN interfaces
- CE, IEC certified
Documentation
Datasheet preview
Technical documentation for SM-LFP 24200 | IP20.
SM-LFP 24200 | IP20 DatasheetOpen in new tab
Common questions
SM-LFP 24200 | IP20 FAQs
Straight answers from official SolarMax product data.
What is the SolarMax SM-LFP 24200 | IP20?
The SolarMax SM-LFP 24200 | IP20 is a LiFePO4 battery in the Lithium-Ion Batteries. 24V 200Ah high-capacity storage with smart BMS. For Solar Energy Storage Systems with smart BMS Builtin. Key labels include 25.6 V, 200 Ah, 5.12 kWh.
What are the key specifications of the SM-LFP 24200 | IP20?
Official SolarMax specifications for the SM-LFP 24200 | IP20 include Rated Voltage: 25.6 V; Capacity: 200 Ah; Energy: 5.12 kWh; Chemistry: LiFePO4. Full technical data is published on the product page and datasheet.
Where can I download the SM-LFP 24200 | IP20 datasheet?
Download the official SM-LFP 24200 | IP20 datasheet (PDF, 0.2 MB) from https://solarmax.pk/products/lfp-24200 or the SolarMax downloads page at https://solarmax.pk/downloads.
How do I enquire about the SM-LFP 24200 | IP20 in Pakistan?
Contact SolarMax sales at 0300-1110888 or info@solarmax.pk, or use the product enquiry form on https://solarmax.pk/products/lfp-24200. Customer care is available at 0317-1113749.
What features does the SM-LFP 24200 | IP20 include?
Highlighted features of the SolarMax SM-LFP 24200 | IP20 include Floor-standing LiFePO4 storage; Parallel up to 16 units; 5.12 kWh / 200 Ah capacity.
