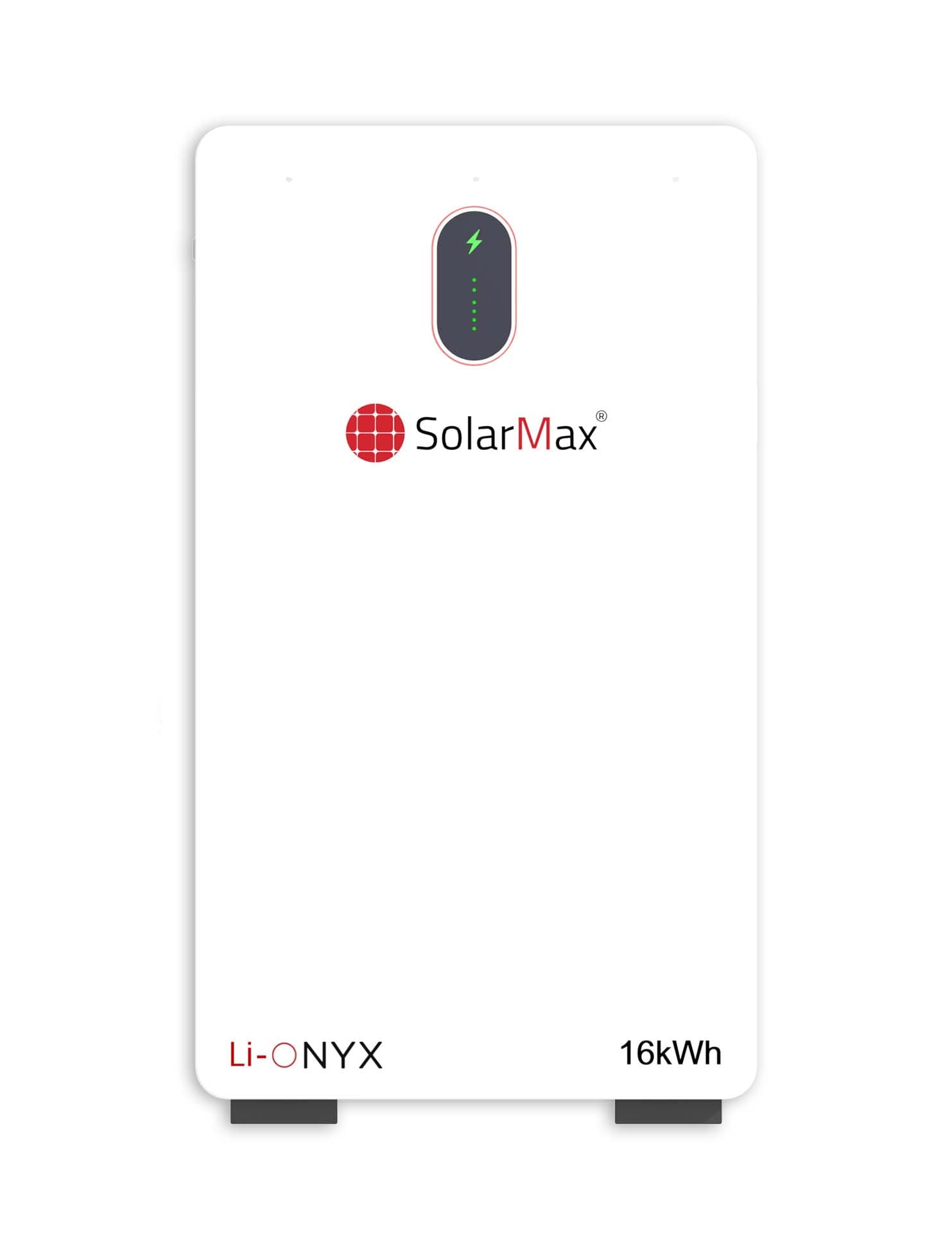

SM-LI-ONYX 16 kWh
16.07 kWh · 51.2 V
High-capacity LiFePO4 floor-standing storage with smart BMS and 6000+ cycle life.
Lithium-Ion Batteries

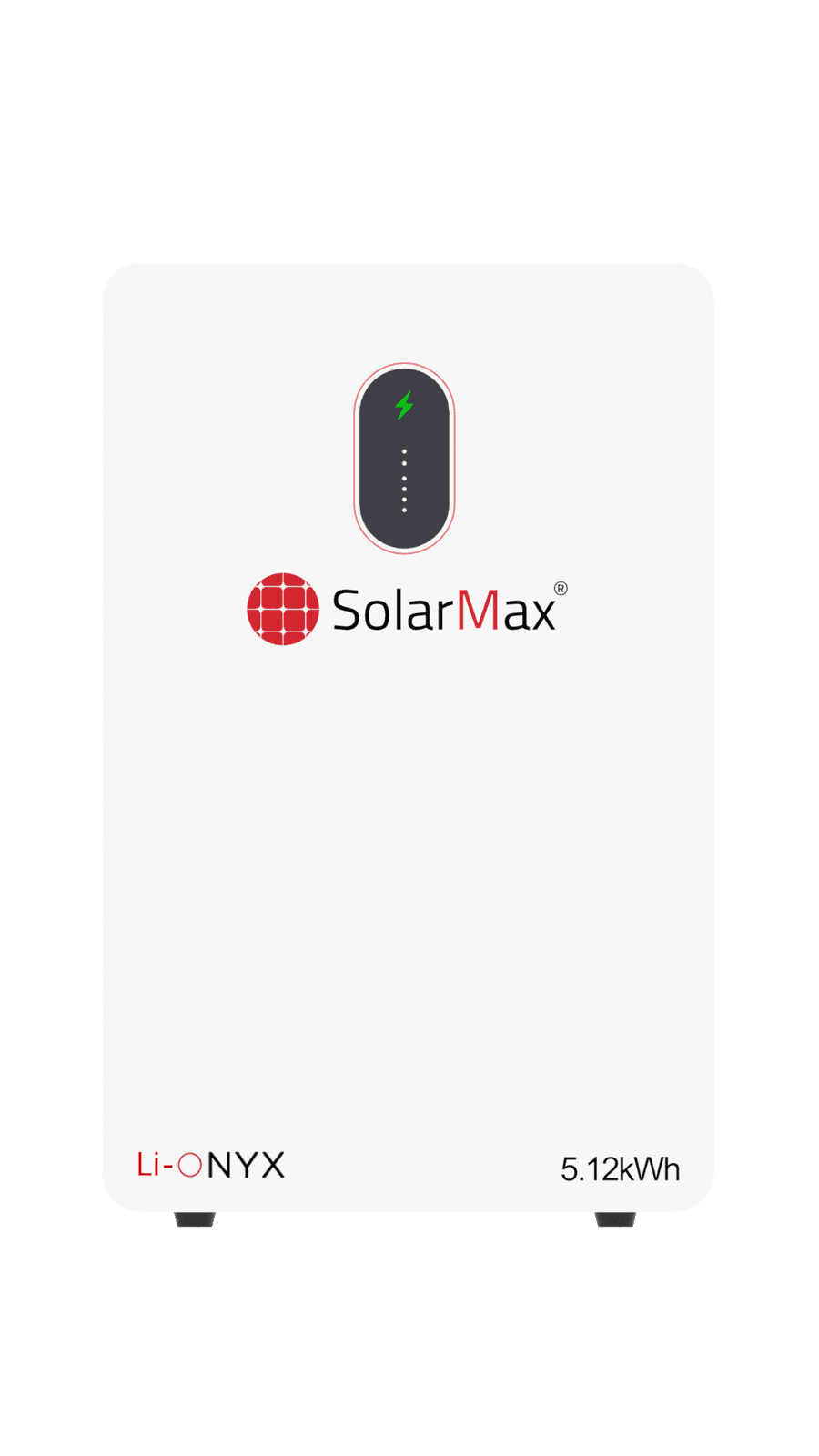

SM-LI-ONYX 5.12 kWh
Compact LiFePO4 wall or floor storage with smart BMS and 6000+ cycle life.
5.12 kWh51.2 VLiFePO4
Official datasheet · 0.3 MB
- Lifetime free service warranty
- ISO · CE · IEC certified
- Nationwide care network
Technical data
Key specifications
- Battery Type
- LiFePO4
- Nominal Energy
- 5.12 kWh
- Nominal Capacity
- 100 Ah
- Nominal Voltage
- 51.2 V
- Operating Voltage
- 43.2–57.6 V
- Charge / Discharge
- 60 A continuous
- Max Charge / Discharge
- 100 A / 100 A
- Cycle Life
- 6,000 cycles
- Installation
- Floor Stand or Wall Bracket
- Dimensions
- 400 × 620 × 160 mm
- Weight
- 45 kg
Product highlights
Built for real-world performance
- 5.12 kWh LiFePO4 energy storage
- 6000+ cycle life with smart BMS
- Built-in fire protection module
- Floor-standing or wall-bracket installation
- CAN, RS485, Bluetooth communication
- Compatible with hybrid and off-grid inverters
- UN 38.3, IEC 61000, IEC 62619 certified
Documentation
Datasheet preview
Technical documentation for SM-LI-ONYX 5.12 kWh.
SM-LI-ONYX 5.12 kWh DatasheetOpen in new tab
Common questions
SM-LI-ONYX 5.12 kWh FAQs
Straight answers from official SolarMax product data.
What is the SolarMax SM-LI-ONYX 5.12 kWh?
The SolarMax SM-LI-ONYX 5.12 kWh is a LiFePO4 battery in the Lithium-Ion Batteries. Compact LiFePO4 wall or floor storage with smart BMS and 6000+ cycle life. Key labels include 5.12 kWh, 51.2 V, LiFePO4.
What are the key specifications of the SM-LI-ONYX 5.12 kWh?
Official SolarMax specifications for the SM-LI-ONYX 5.12 kWh include Battery Type: LiFePO4; Nominal Energy: 5.12 kWh; Nominal Capacity: 100 Ah; Nominal Voltage: 51.2 V. Full technical data is published on the product page and datasheet.
Where can I download the SM-LI-ONYX 5.12 kWh datasheet?
Download the official SM-LI-ONYX 5.12 kWh datasheet (PDF, 0.3 MB) from https://solarmax.pk/products/li-onyx-5-12kwh or the SolarMax downloads page at https://solarmax.pk/downloads.
How do I enquire about the SM-LI-ONYX 5.12 kWh in Pakistan?
Contact SolarMax sales at 0300-1110888 or info@solarmax.pk, or use the product enquiry form on https://solarmax.pk/products/li-onyx-5-12kwh. Customer care is available at 0317-1113749.
What features does the SM-LI-ONYX 5.12 kWh include?
Highlighted features of the SolarMax SM-LI-ONYX 5.12 kWh include 5.12 kWh LiFePO4 energy storage; 6000+ cycle life with smart BMS; Built-in fire protection module.
Same product family
More from Lithium-Ion Batteries
Lithium-Ion Batteries

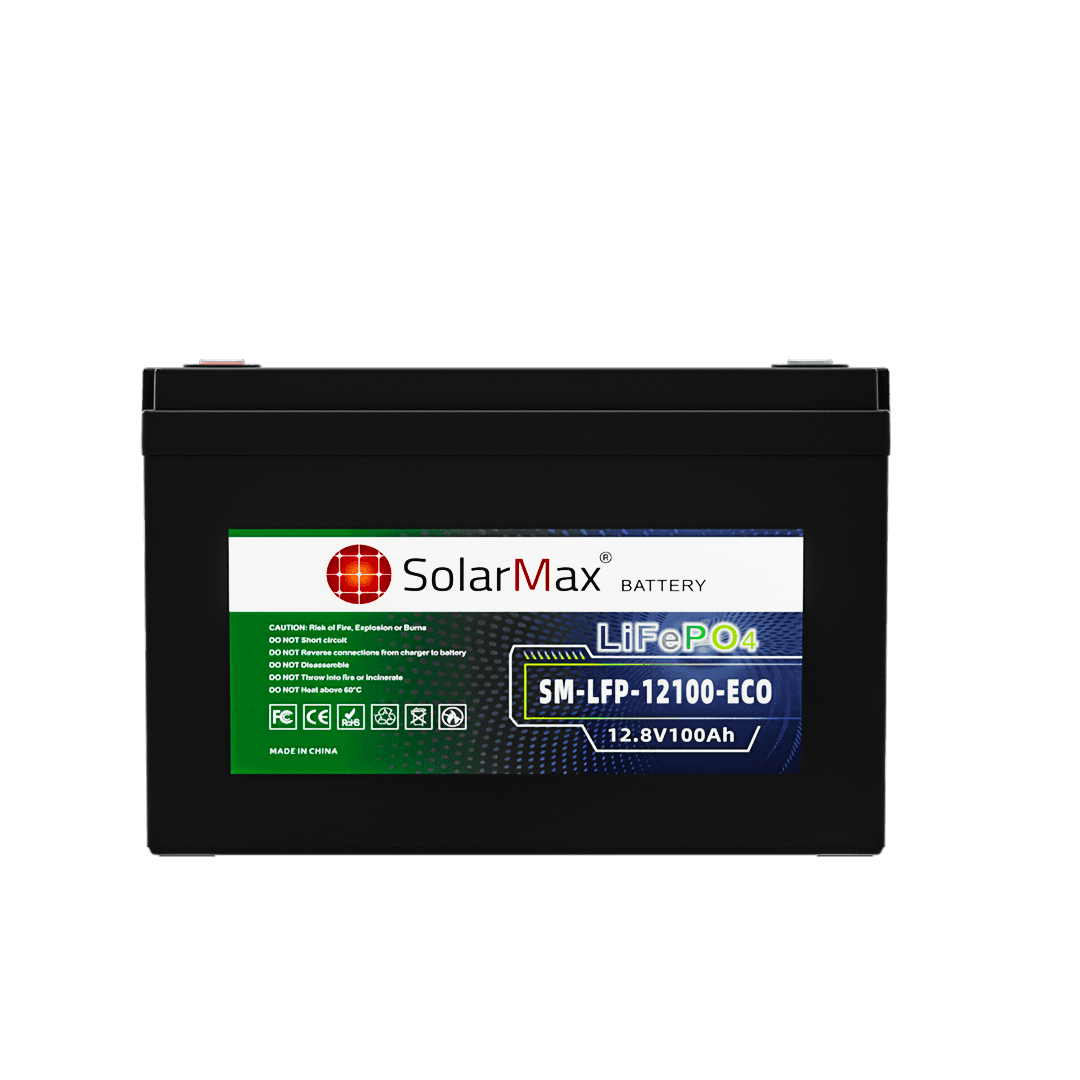

SM-LFP 12100 ECO
12V 100Ah · 1.28 kWh
Value-focused 12V 100Ah storage with core protections.
Lithium-Ion Batteries

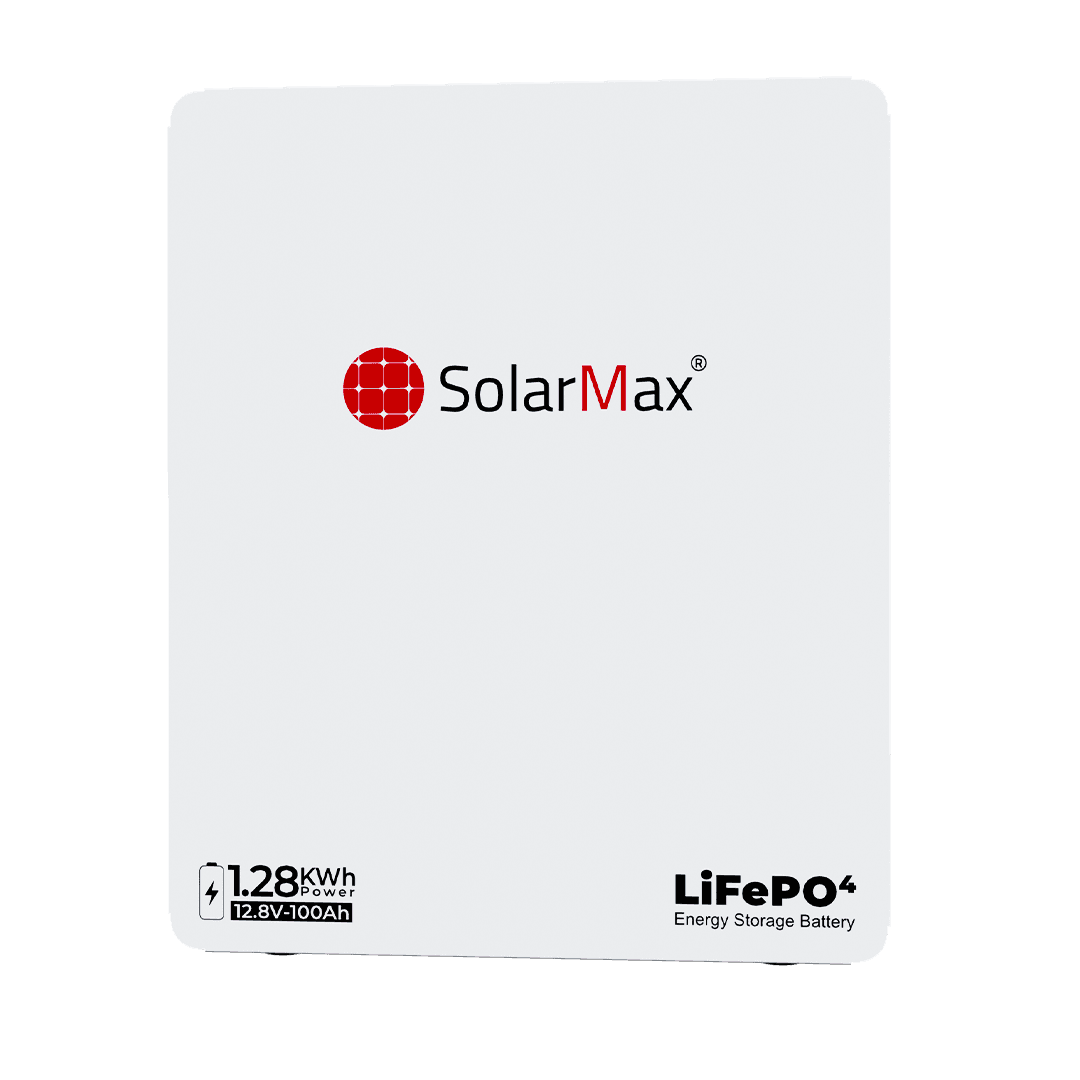

SM-LFP 12100
12V 100Ah · 1.28 kWh
Compact 12V 100Ah storage for essential backup.
Lithium-Ion Batteries

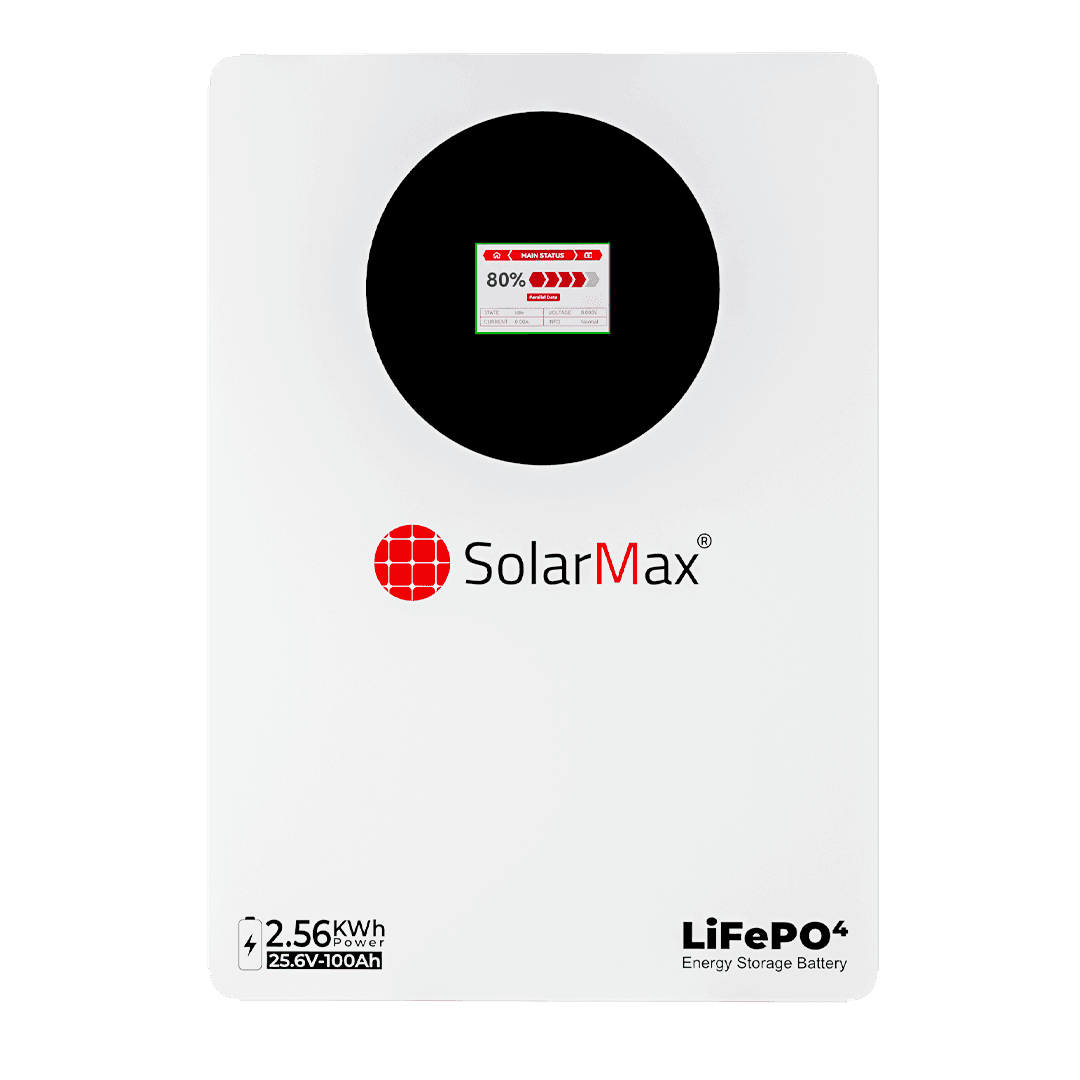

SM-LFP 24100
24V 100Ah · 2.56 kWh
24V 100Ah storage for mid-size backup requirements.
Expert sizing support
Interested in SM-LI-ONYX 5.12 kWh?
Share your load profile and our engineers will recommend the right system.
