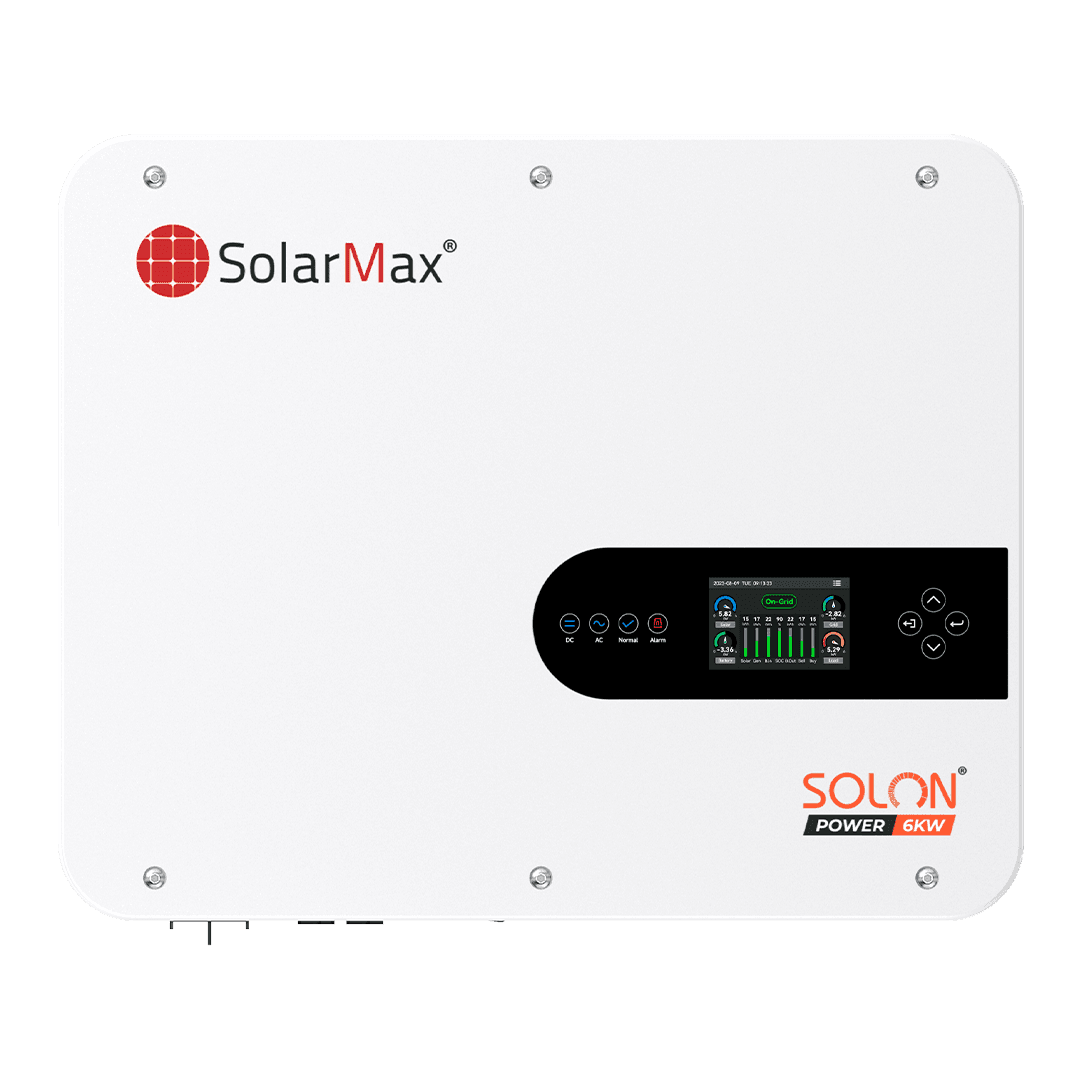

SOLON IP65 6KW

SOLON Series Inverters · IP65 Protection Rating

SOLON 6KW

IP65 inverter rated 6 kW, with grid and off-grid outputs, 48 V battery support and 9,200 Wp recommended PV input.

Rated Output
6,000 W
Recommended Max PV Input
9,200 Wp
MPPT Voltage Range
125–500 V
MPPT / Max Input Current
2 / 18 A
Max Efficiency
97.6%

Overview

Grid and Off-Grid Output

IP65 inverter rated 6 kW, with grid and off-grid outputs, 48 V battery support and 9,200 Wp recommended PV input.

  • IP65 Protection
  • Grid & Off-Grid Output
  • LCD + LED + App
  • WiFi Dongle Included

IP65 Inverter

SOLON 6KW

IP65 Protection Rating

IP65 Protection

IP65 protection rating, wall-mounted

9200Wp

Recommended Max. PV Input

Grid &

Off-Grid Output

On-grid / off-grid switching time under 10 ms

LCD + LED

+ App

LCD, LED and app display

At a glance

  • IP65 protection rating
  • Grid output and off-grid AC load output
  • On-grid / off-grid switching under 10 ms
  • LCD + LED + app display

From the official datasheet

SOLON IP65 6KW features

  • IP65 protection rating
  • Grid output and off-grid AC load output
  • On-grid / off-grid switching under 10 ms
  • LCD + LED + app display
  • RS485, WiFi (dongle included), 4G optional
  • Anti-islanding, DC reverse, insulation and leakage current protection
  • Smart cooling, under 35 dB
  • 6-year warranty
  • EN/IEC 62109-1/2 safety; IEC 62116 and IEC 61727 grid standards

WiFi Dongle Included

RS485 and WiFi; 4G optional

Dual MPPT

2 MPPTs, 18 A max input current each

6 Years Warranty

6-year warranty

Technical data

Key specifications

Rated Output
6,000 W
Recommended Max PV Input
9,200 Wp
MPPT Voltage Range
125–500 V
MPPT / Max Input Current
2 / 18 A
Max Efficiency
97.6%
Battery
48 VDC (40–60 VDC)
Max Charge / Discharge Current
135 A
Off-Grid Output
6,600 W
On/Off-Grid Switching
<10 ms
Protection
IP65
Display
LCD + LED + App
Dimensions
580 × 330 × 232 mm
Weight
20.5 kg
Warranty
6 years

Product highlights

Features from the datasheet

  • IP65 protection rating
  • Grid output and off-grid AC load output
  • On-grid / off-grid switching under 10 ms
  • LCD + LED + app display
  • RS485, WiFi (dongle included), 4G optional
  • Anti-islanding, DC reverse, insulation and leakage current protection
  • Smart cooling, under 35 dB
  • 6-year warranty
  • EN/IEC 62109-1/2 safety; IEC 62116 and IEC 61727 grid standards

Documentation

Datasheet preview

Technical documentation for SOLON IP65 6KW.

Download
SOLON IP65 6KW DatasheetOpen in new tab

Installation & operation

User manual

SOLON IP65 / UL 6 kW User Manual · 8.6 MB

Download Manual
SOLON IP65 / UL 6 kW User ManualOpen in new tab

Common questions

SOLON IP65 6KW FAQs

Straight answers from official SolarMax product data.

What is the SolarMax SOLON IP65 6KW?

The SolarMax SOLON IP65 6KW is a solar inverter in the SOLON Series Inverters. IP65 inverter rated 6 kW, with grid and off-grid outputs, 48 V battery support and 9,200 Wp recommended PV input. Key labels include 6 kW, IP65, 48 VDC.

What are the key specifications of the SOLON IP65 6KW?

Official SolarMax specifications for the SOLON IP65 6KW include Rated Output: 6,000 W; Recommended Max PV Input: 9,200 Wp; MPPT Voltage Range: 125–500 V; MPPT / Max Input Current: 2 / 18 A. Full technical data is published on the product page and datasheet.

Where can I download the SOLON IP65 6KW datasheet?

Download the official SOLON IP65 6KW datasheet (PDF, 0.6 MB) from https://solarmax.pk/products/solon-ip65-6kw or the SolarMax downloads page at https://solarmax.pk/downloads.

Where can I download the SOLON IP65 6KW user manual?

Download the official SOLON IP65 / UL 6 kW User Manual (PDF, 8.6 MB) from https://solarmax.pk/products/solon-ip65-6kw or the SolarMax downloads page at https://solarmax.pk/downloads?tab=manuals.

How do I enquire about the SOLON IP65 6KW in Pakistan?

Contact SolarMax sales at 0300-1110888 or info@solarmax.pk, or use the product enquiry form on https://solarmax.pk/products/solon-ip65-6kw. Customer care is available at 0317-1113749.

What features does the SOLON IP65 6KW include?

Highlighted features of the SolarMax SOLON IP65 6KW include IP65 protection rating; Grid output and off-grid AC load output; On-grid / off-grid switching under 10 ms.
